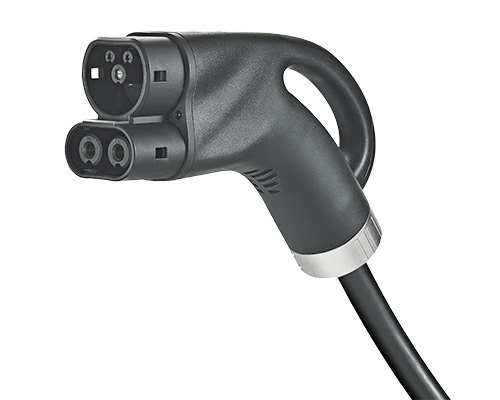

CCS2 DC EV Charging Plug/Gun

CCS2 EV DC Charging Socket (Vehicle Inlet)

Energy Storage Connector

Guchen Electronics is specialized in designing and manufacturing of electric vehicle high voltage connectors (with various specifications and features), HV wire harness & cables, EV charging equipment, and HV connectors for Battery Energy Storage System (BESS).

6mm HV connector for energy storage system

GCS1 6mm 100A-120A Battery Pole Connector

GCS1 8mm 120A-200A Energy Storage Connector

GCS1 12mm 250A-350A Battery High Voltage Connector

GCS2 300A Battery Copper Bus Bar Connector

Li-ion Battery Fire Protection System

The most effective lithium-ion battery fire protection system is using nitrogen gas as protection to lower the oxygen level in the power battery box. By this method, If the battery box catches fire due to external factors, the nitrogen stored in the gas tank provides protection, isolates oxygen in the air, prevents thermal runaway, and prevents explosion.

lithium-ion battery nitrogen gas fire protection device

Nitrogen Fire Protection Device for Preventing EV Li-ion Battery Thermal Runaway

Blog

Company Blog

Guchen Electronics is a professional China factory for electric vehicle connectors, high voltage cable assemblies, EV charging equipment and energy storage connectors. We provide all kinds of products with high quality and competitive price.

Industry Blog

Here you can learn about the global electric vehicle industry, news, reviews and analysis about electric vehicle industry trends, technologies and manufacturers.

Exhibitions

Guchen Electronics attends various exhibitions yearly, including Electric Vehicle Expo which has become a world-famous event. As one of the best EV HV connector manufacturers, Guchen Electronics has attracted hundreds of suppliers and buyers from all over the world during the exhibitions.

Technical Support

Guchen provides one-stop technical supports relating to HV connectors, cable assemblies, and energy storage connectors. We have strong expertise in different technologies not only limited to power electronics. We have provided the standard level of services for our customers during the whole process from initial product design, building to mass production and routine maintenance.

About Us

About us

Quality Assurance

Service

About us

Guchen Electronics is a professional manufacturer and custom solution provider of electric vehicle connection system and ESS battery connection system. We are located in Shenzhen, China. Our international business covers more than 70 countries around the world. With many years' experience in the field, we can provide OEM products with high quality, good price and on time delivery. Welcome to contact us if you are interested in any of our products.

Quality Assurance

Guchen Electronics is a manufacturer of all kinds of high voltage connectors. Our products include, high voltage interlock connectors, low/high current HV connectors and cable assembly which are compliant with international standards. We have an excellent team and advanced production equipment to meet market demands.

Service

No matter your business is large or small, OEM, ODM and OBM orders are all available. We can provide you with the best pre-sale and after-sale services, to ensure that your orders are completed smoothly in time. Guchen connectors covers all kinds of types with OEM services. We firmly believe that it is the best way to establish a win-win cooperation. Guchen EV HV connectors is your excellent choice. The reasons why Guchen EV HV connectors is your competent partner: 1) Good quality + Competitive price + Professional service 2) Short delivery date 3) Reliable and stable after-sale service

Contact

Product Details Features Applications Configurations Message

Quote Now > Send Email >

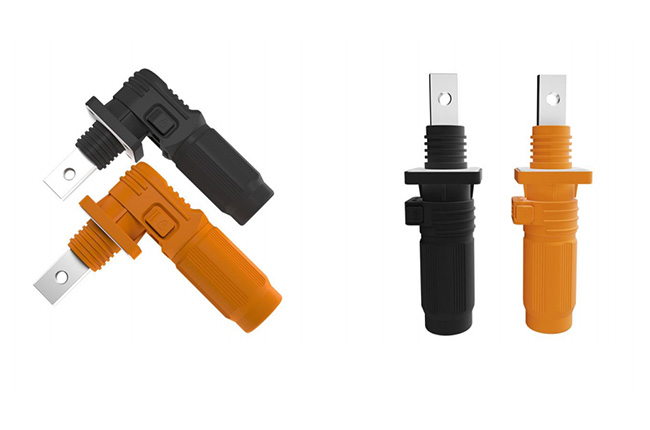

GCS1 8mm Energy Storage Connector Details

GCS1 8mm model energy storage connectors are used for positive and negative high voltage connections between battery packs for chemical energy storage systems. They can be used for fast, safe and cost effective installation of energy storage systems with voltages up to 1,500 V and currents up to 200A.
The main series include 120A/150A/200A. Available with conductor cross-sections 25 mm², 35 mm², and 50 mm².

Main Parameters
Applicable wire diameter: 25mm² / 35mm² / 50mm²
Rated current: 120A / 150A / 200A
Rated voltage: 1500V

About Guchen Modular Energy Storage Connectors
Guchen battery energy storage connectors can be customized to suit customer requirements. All models share the same technology and features! Simply select a secure plug-in connector that matches your ESS specifications and with our GCS1 model, you can rest assured that it is able to provide maximum safety and effective connection for energy storage systems.

Product Advantages of GCS1 8mm Battery Storage Connector

1. 360 degree rotation : Easy wiring with various adjustable angles.
GCS1 is a lightweight, high-quality battery pole connector. It can be used in all modular and mobile battery energy storage systems, and has the advantage of allowing flexible cable outlets.

2. Prevent anti-misplacement: Different keys have anti-misplacement function and can be inserted blindly.

3. Multiple color versions: red positive, black negative
The colour red for plus and black for minus make it easy to wire up and identify polarity. The GCS1 battery energy storage connector also features silver plated terminals for improved conductivity and corrosion resistance.

4. Safe and reliable: with secondary locking function, double protection.

5. Various specifications are available, up to 1500V, 200A. Cable specification 25mm²~50mm² is optional.
GCS1 is compatible with all 8mm battery leads and will fit into any energy storage system that accepts standard battery pole connectors.

Applications

Battery energy storage connector

High current and efficiency battery energy storage connectors

Lightweight, high-quality battery pole connector

Guchen Modular Energy Storage Connectors

GCS1 8mm Battery Pole Connector Parameters:

Model		GCS1 8mm
Conductor cross-section		25mm²	35mm²	50mm²
Electrical Performance	Rated current	120A	150A	200A
	Rated voltage	1500V
	Withstand voltage	4000V
	Insulation resistance	5000MΩ
	The above insulation resistance is tested in an environment with a temperature below 40°C and a humidity below 50%RH; When the humidity is above 95%, the insulation resistance is ≥300MΩ.
Mechanical Performance	Mechanical life	100 times
	Number of contacts	1
	Vibration level	QC/T 1067.1-2017 V1
Environmental resistance	Protection class	IP67 (optional), IP69K, Sockets are individually sealed(optional)
	Operating temperature	-40℃~125℃
	Salt spray	Neutral salt spray 48h(unsealed); 480h(sealed)
Main material	Material (hood/housing)	Nylon (Polyamide- PA)
	Material (seals)	Silicone Rubber
	Material (contacts)	Silver plated red copper
